Enterprise Live Streaming, Recording & Switching Console

Description

Enterprise Portable Live Production Switcher

Linux-based Portable Live Production Switcher: High Reliability & Stability (No Android)

4-Channel ISO Recording & Multi-platform Streaming

Concealed WiFi 6 Antenna

simply connect a monitor and keyboard/mouse to start

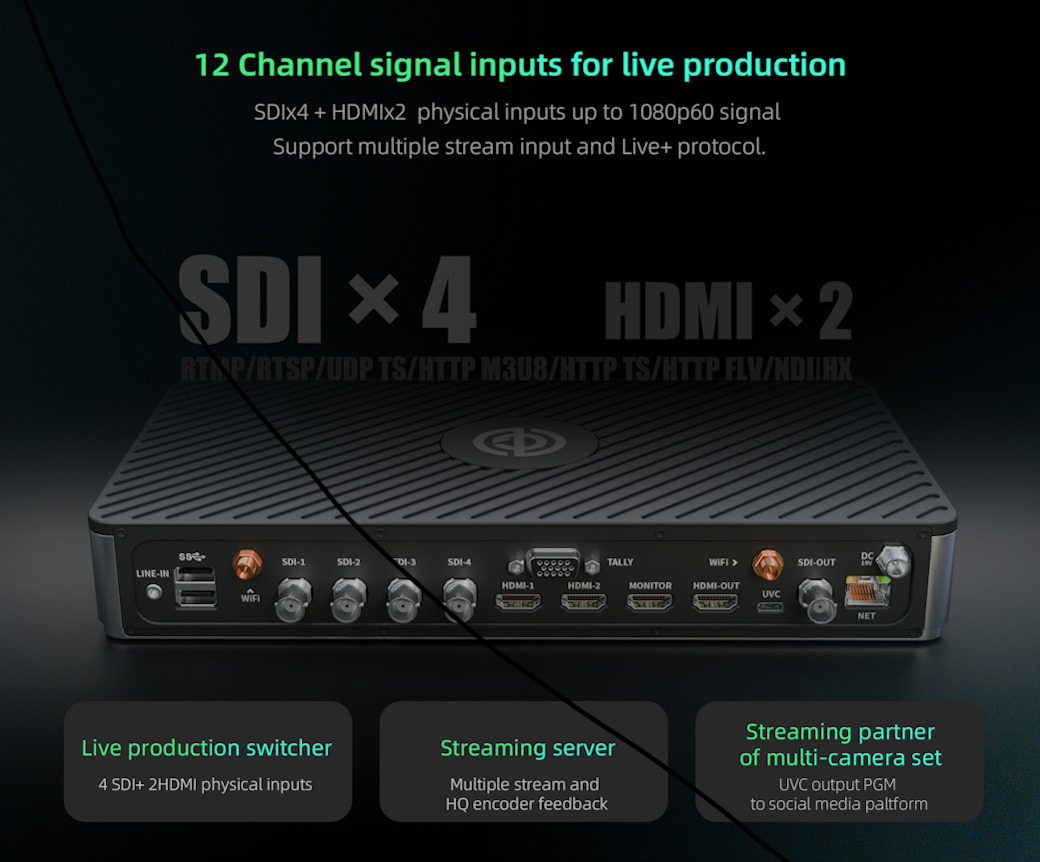

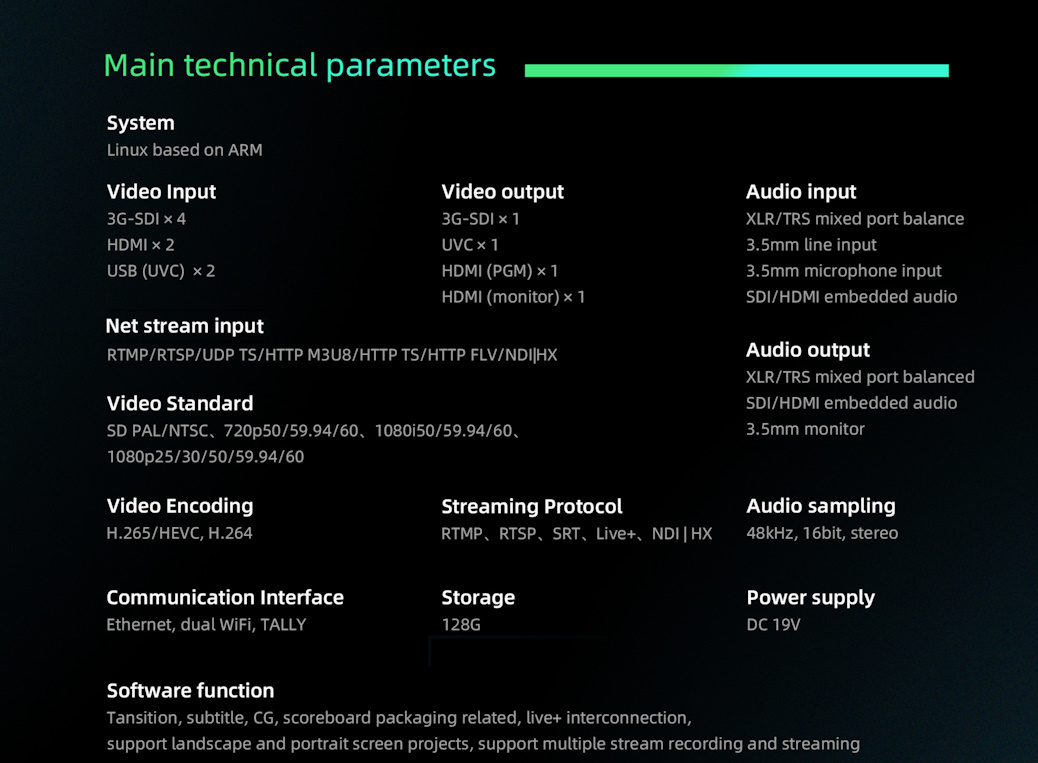

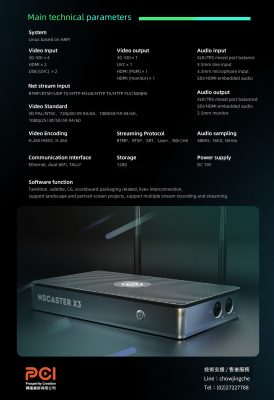

Input： HDMI*2 / 3G-SDI*4 / USB(UVC)*2 / 12 slots Source Channel / Live+Connection

Output(1080p60) ：3G-SDI*1 / HDMI*1 / HDMI(Monitor)*1 / UVC(Type-C)*1

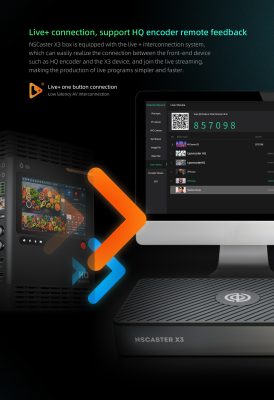

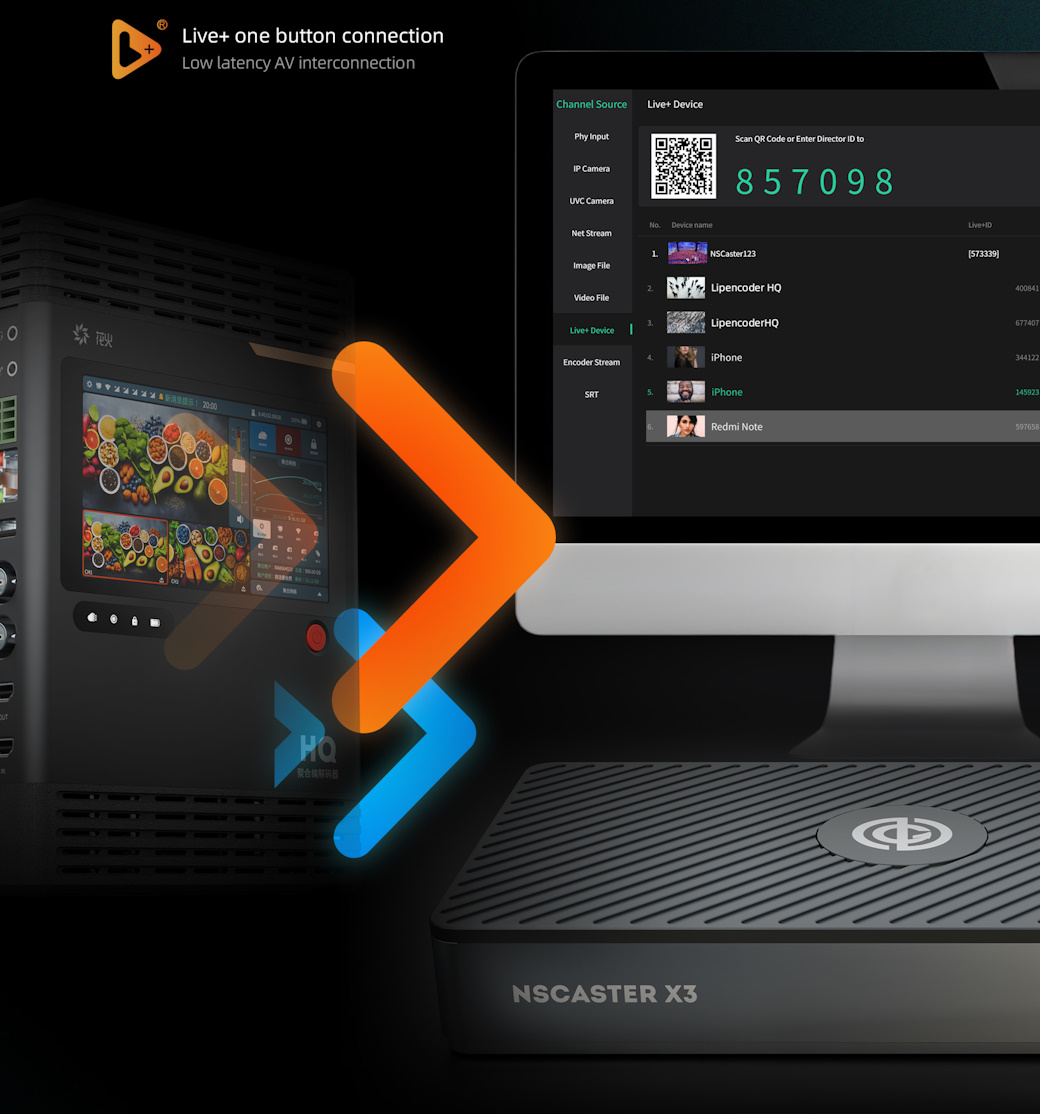

Live+ Internet Connection ：The ultimate solution for remote learning and video conferencing

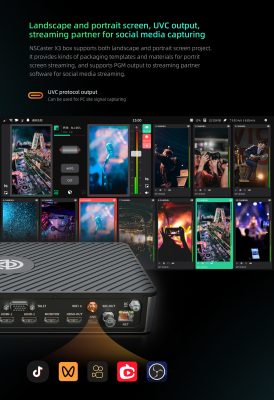

Supports both Portrait (Vertical) and Landscape (Horizontal) modes

UVC output allows use as a camera source for social media and software (OBS, FB, vMix, etc.)

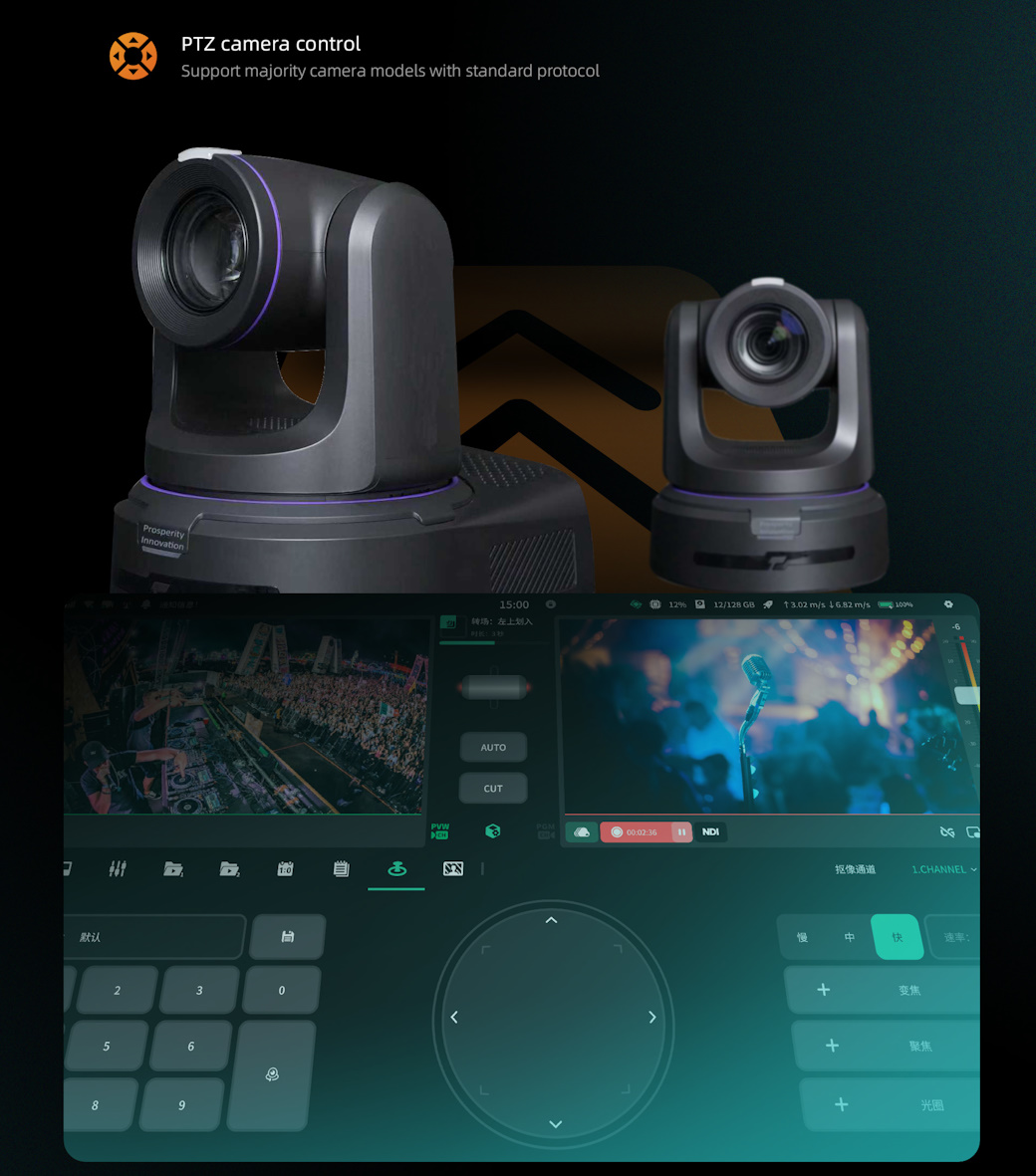

Enterprise-grade PTZ Camera & Tally Light Control System

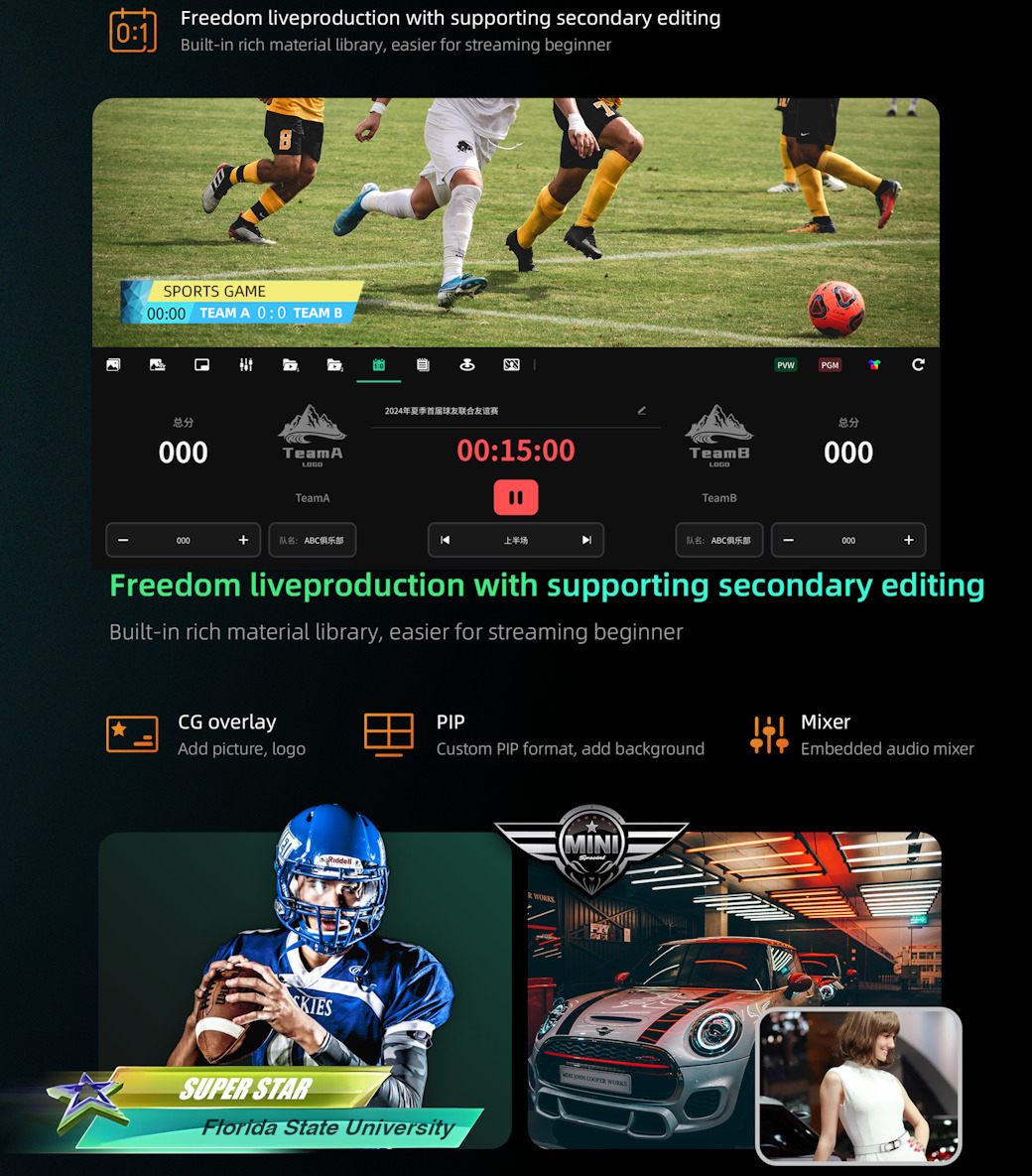

Built-in Graphic Overlays: Supports Station Logos, Lower Thirds, CG, Motion Graphics, PiP, and Scoreboards

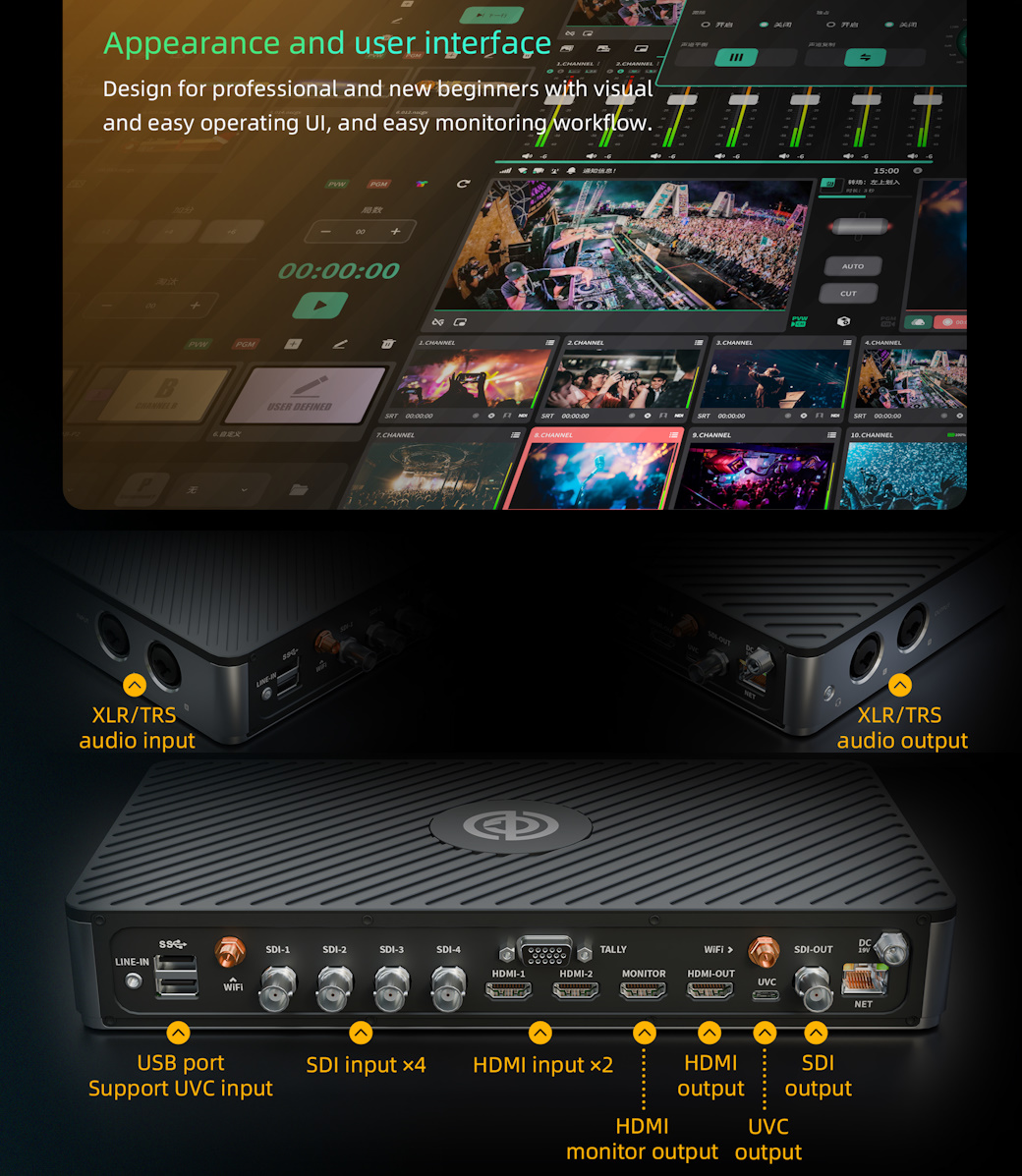

Professional XLR/TRS (6.3mm) Combo Jacks for Audio I/O with Built-in 12-Channel Audio Mixer

FTP Auto-Archiving & PDF Presentation Support， Adaptive for small, medium, and large-scale event

Support Streaming Protocal ：RTMP、RTSP、SRT、NDI|HX、Live+、HTTP、UDP TS

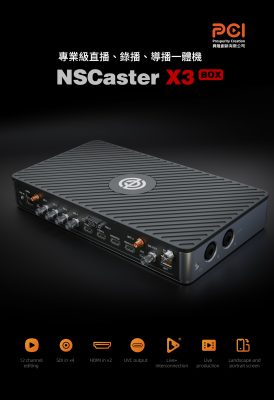

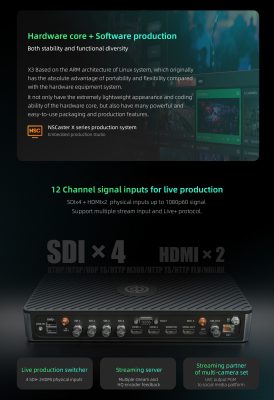

The NSCaster X3 is an enterprise-grade, all-in-one live production platform that integrates streaming, recording, and switching into a single, powerful device. Built on a Linux-based ARM architecture, it overcomes the stability issues often found in Android systems. This standalone, 12-channel full-touch switching host is ready for action—simply connect a monitor, keyboard, and mouse to start. It supports professional Full HD (up to 1080p60) production, streaming, and recording.

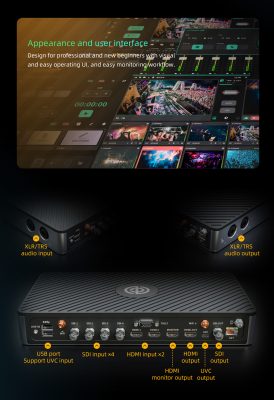

The hardware features 4×SDI and 2×HDMI physical inputs and supports a wide range of mainstream streaming protocols. Furthermore, it enables seamless interactive connectivity with the Live+ protocol, LipEncoder HQ bonding encoders/decoders, and the VJmobileCast app ecosystem.
