Description
Professional Portable Live Studio
(Streaming, Recording & Switching)
Linux-based Portable Live Production Switcher: High Reliability & Stability (No Android)

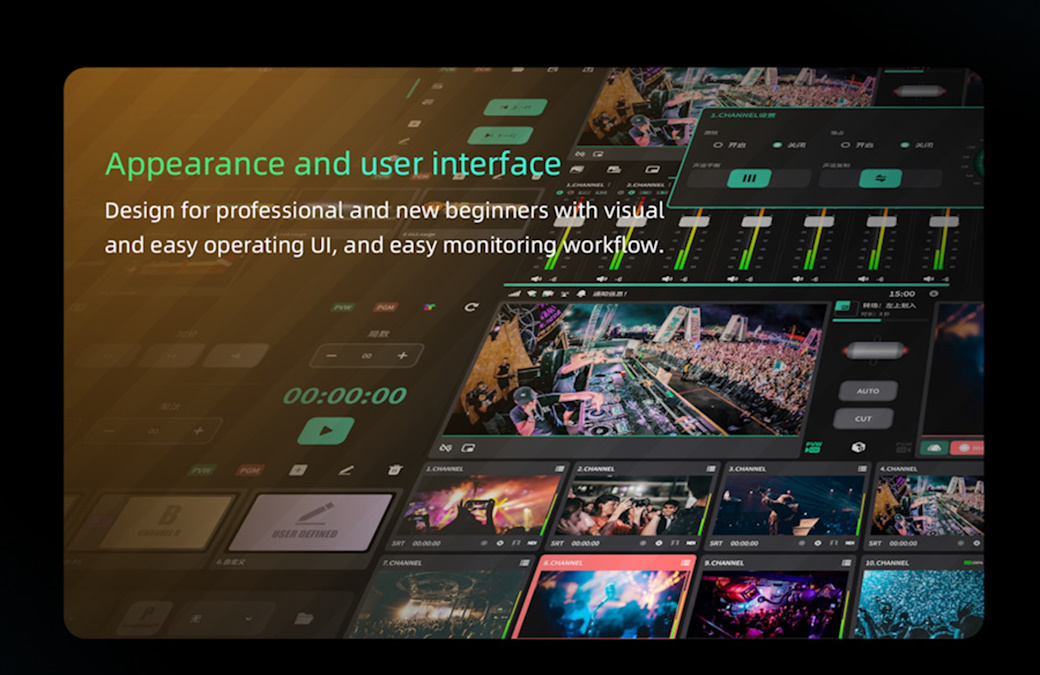

FHD expansive 13.3″ High-Sensitivity Touchscreen
4-Channel ISO Recording & Multi-platform Streaming
Concealed WiFi 6 Antenna

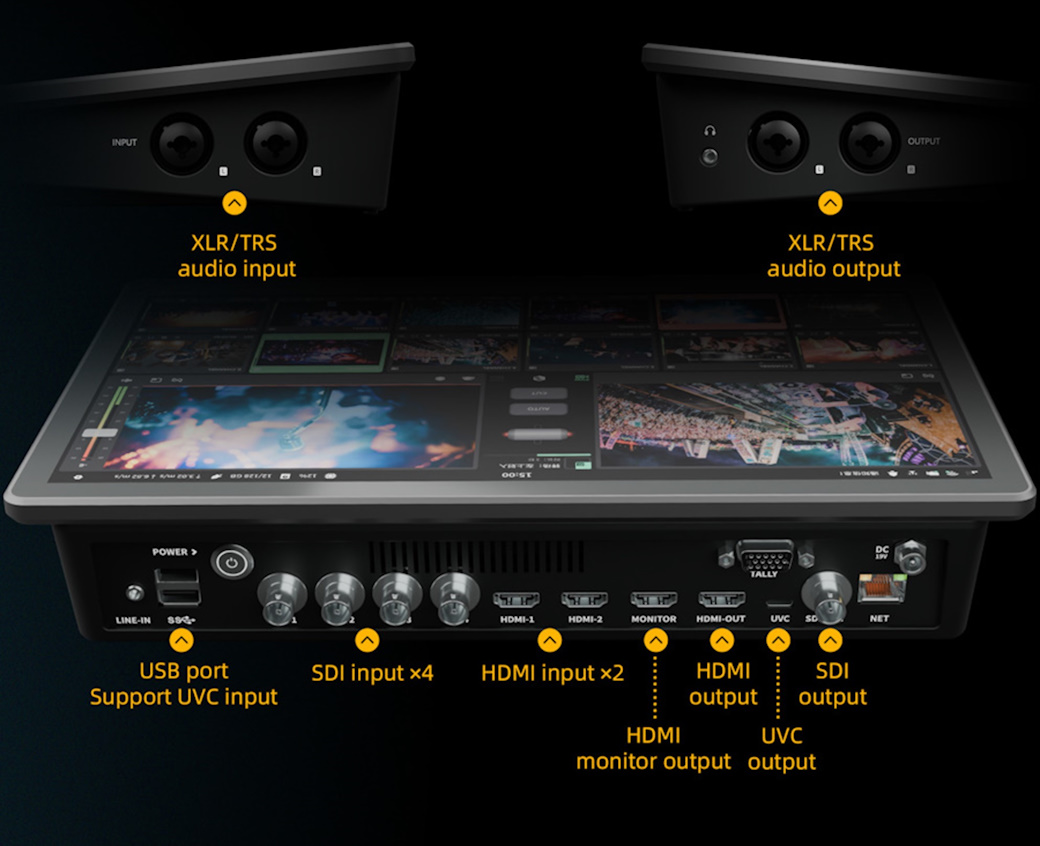

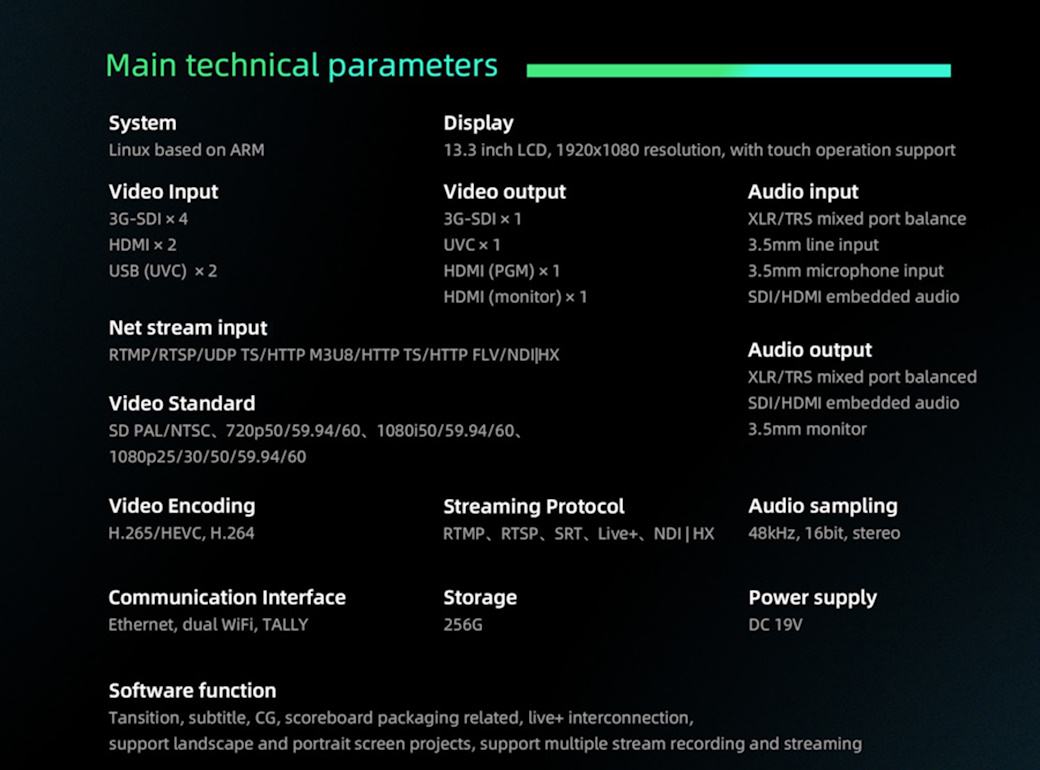

Input： HDMI*2 / 3G-SDI*4 / USB(UVC)*2 / 12 slots Source Channel / Live+Connection
Output(1080p60) ：3G-SDI*1 / HDMI*1 / HDMI(Monitor)*1 / UVC(Type-C)*1
Live+ Internet Connection ：The ultimate solution for remote learning and video conferencing
Supports both Portrait (Vertical) and Landscape (Horizontal) modes

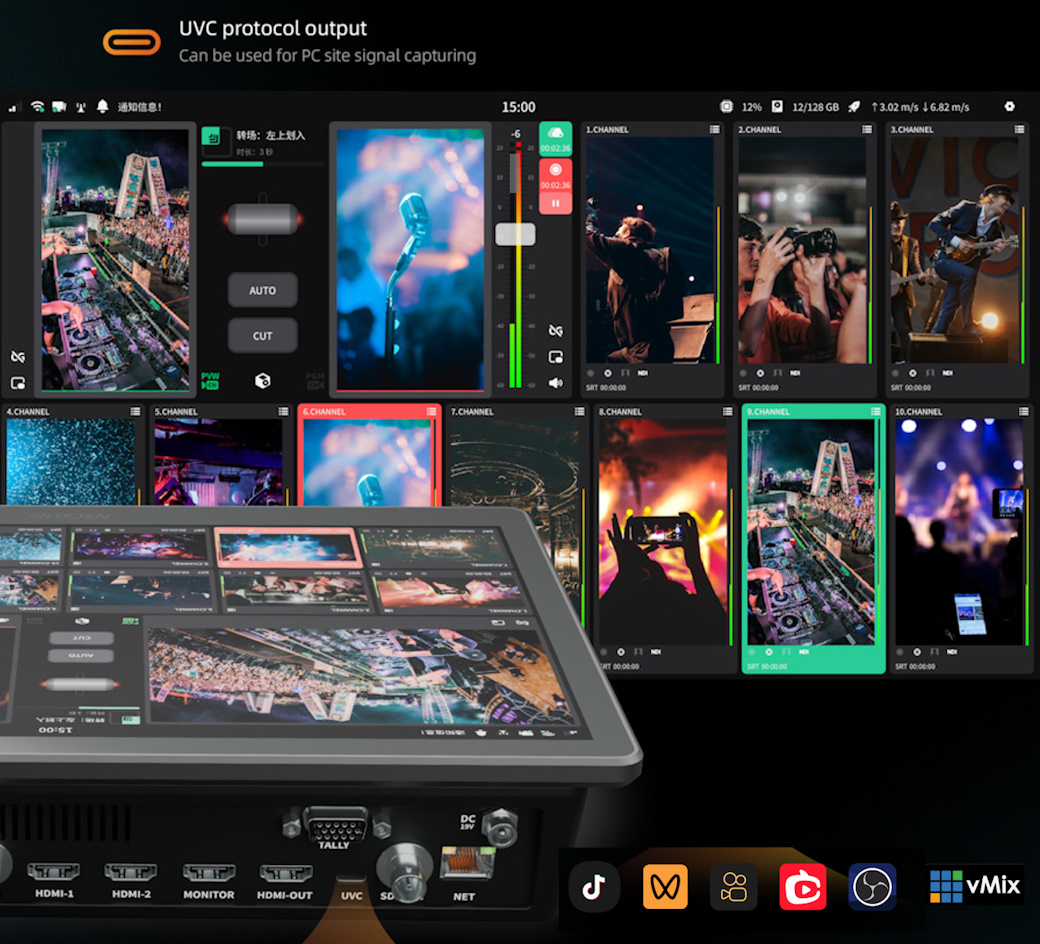

UVC output allows use as a camera source for social media and software (OBS, FB, vMix, etc.)

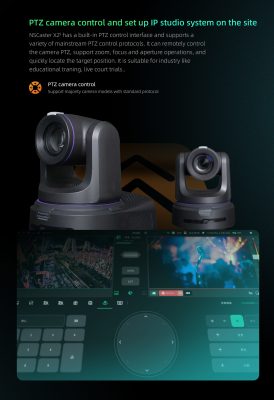

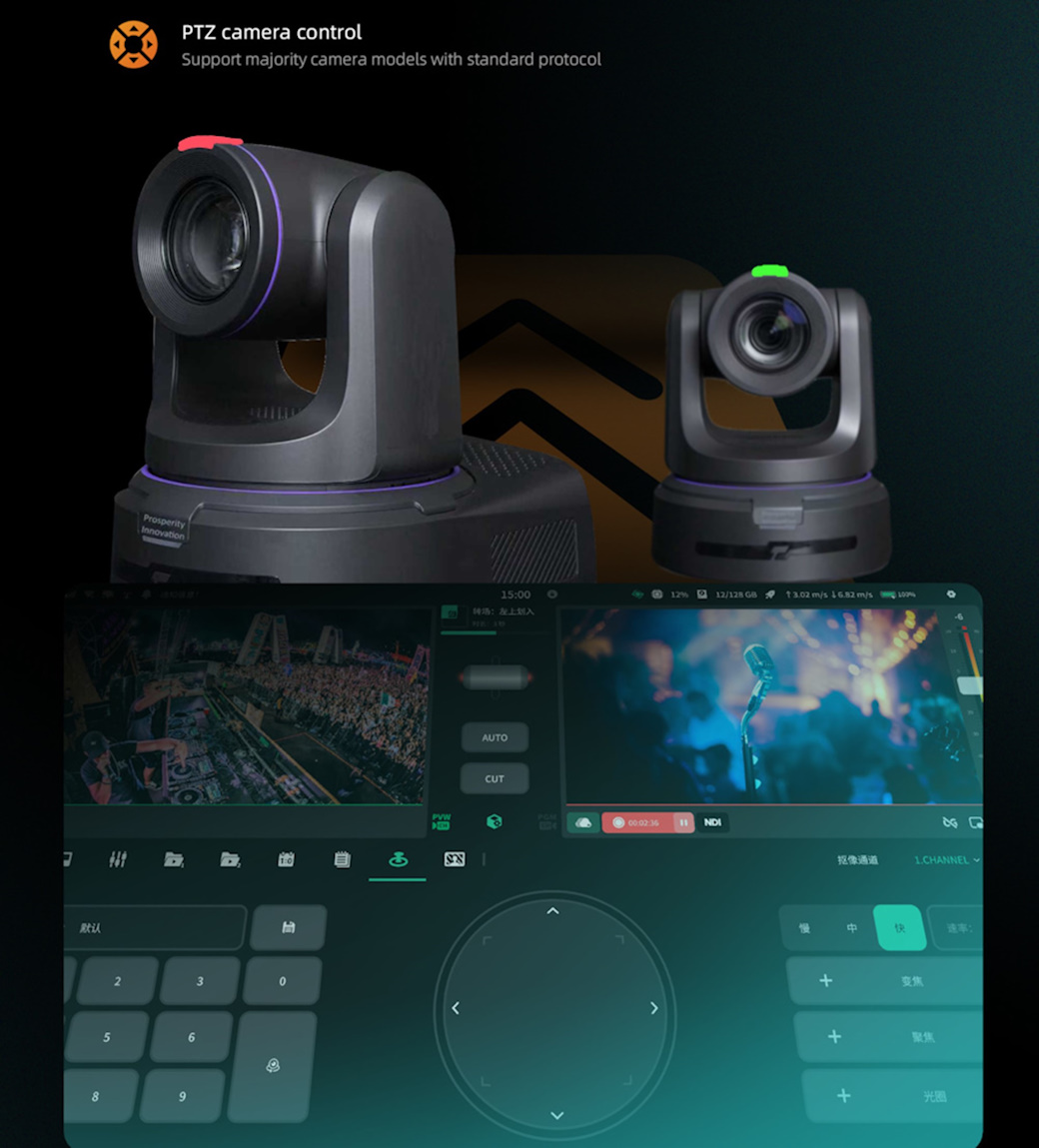

Enterprise-grade PTZ Camera & Tally Light Control System
Built-in Graphic Overlays: Supports Station Logos, Lower Thirds, CG, Motion Graphics, PiP, and Scoreboards

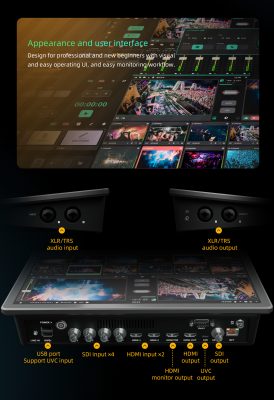

Professional XLR/TRS (6.3mm) Combo Jacks for Audio I/O with Built-in 12-Channel Audio Mixer
FTP Auto-Archiving & PDF Presentation Support
Adaptive for small, medium, and large-scale event
Support Streaming Protocal ：RTMP、RTSP、SRT、NDI|HX、Live+、HTTP、UDP TS

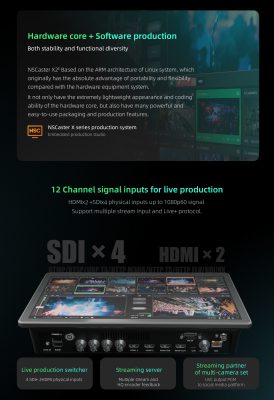

Professional Reliability with Linux & ARM Architecture The NSCaster X2s is an enterprise-grade platform integrating live streaming, recording, and multi-channel switching. Powered by a Linux OS and ARM architecture, it overcomes the stability issues often found in Android systems, delivering a rock-solid performance. As a 12-channel full touchscreen switcher, it supports professional Full HD production, streaming, and recording in a single device.

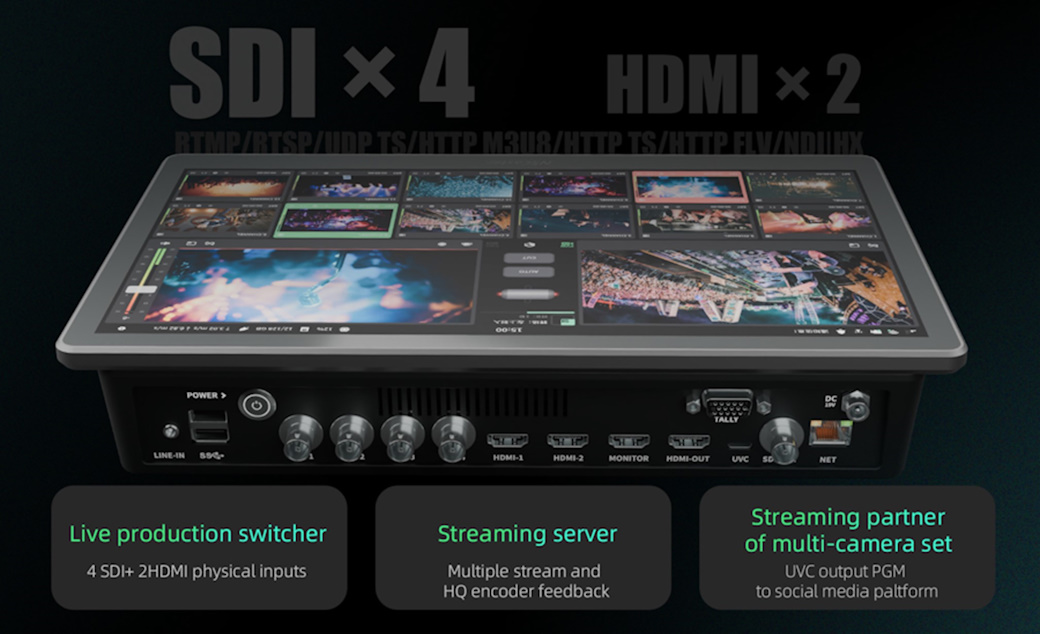

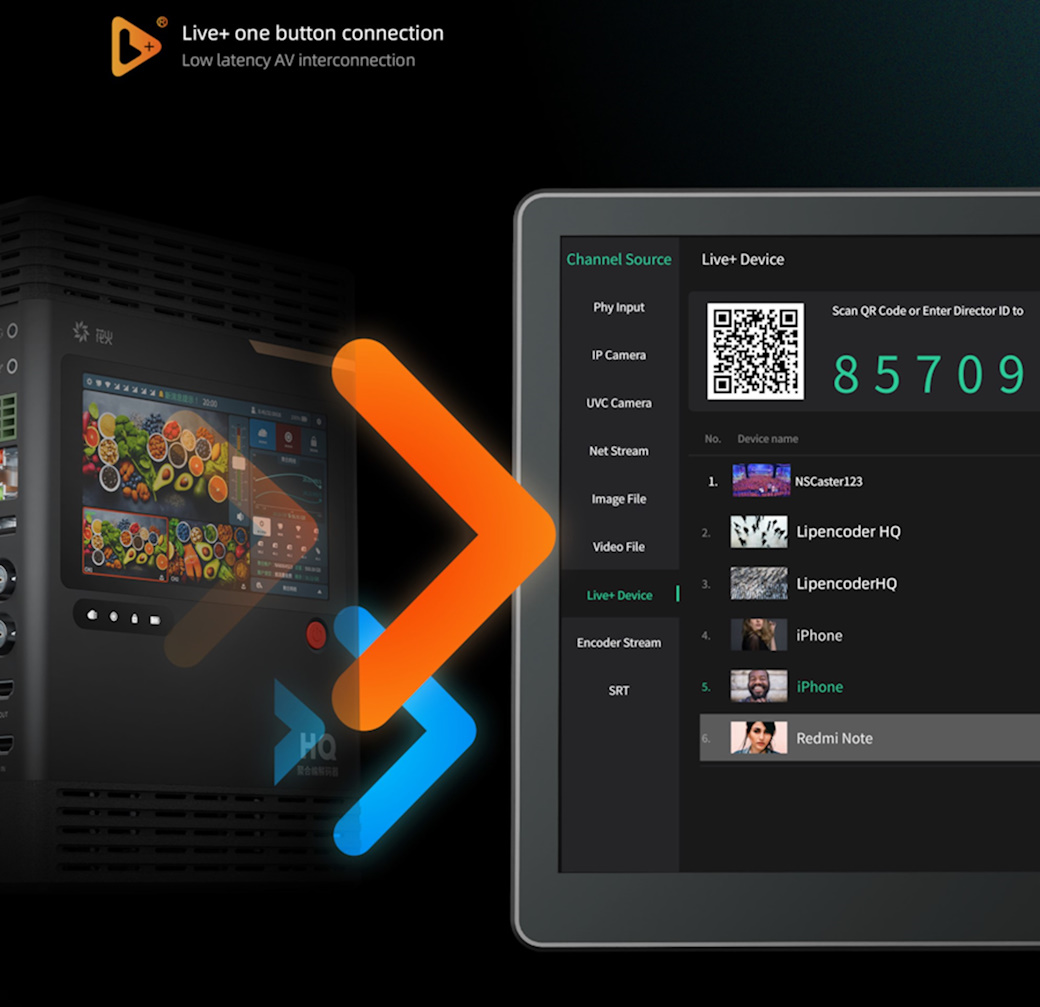

Expansive Visual Control & Versatile Connectivity Featuring a built-in 13.3-inch FHD touchscreen, the device supports up to 1080p60 resolution. With physical inputs including 4×SDI and 2×HDMI, it accommodates professional-tier equipment. The system seamlessly integrates mainstream streaming signals and supports interactive connectivity with the Live+ protocol, LipEncoder HQ bonding encoders/decoders, and the VJmobileCast app

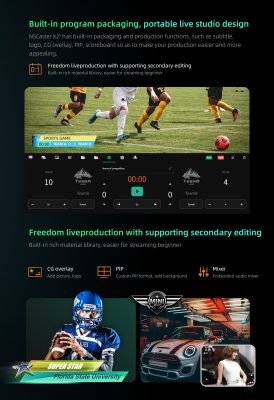

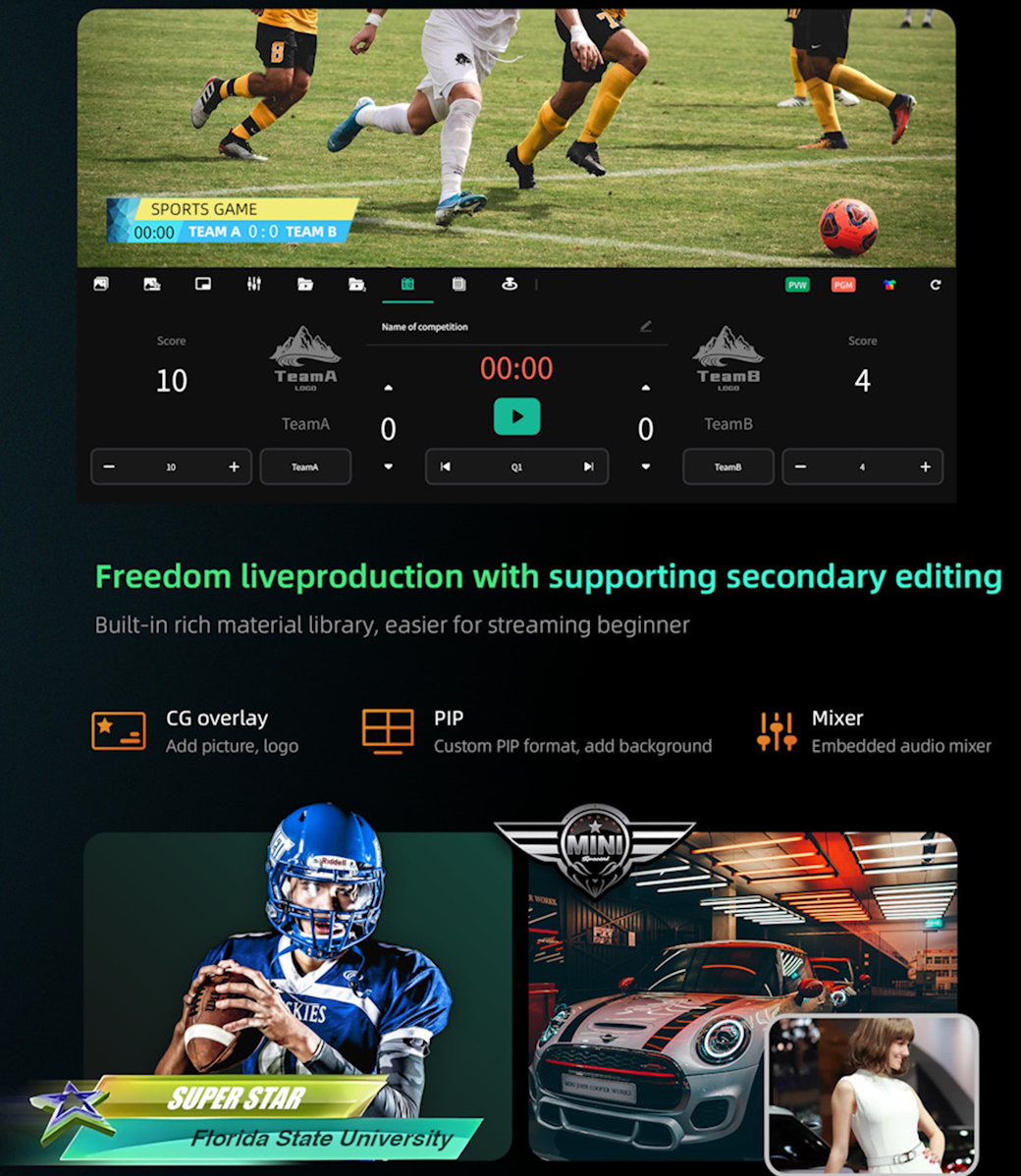

The NSCaster X2s offers a wealth of professional program packaging and production features. With a built-in media library and support for secondary editing, it empowers you to enhance your broadcasts with professional flair and engaging visual elements.
